| How to install |
|---|
 |

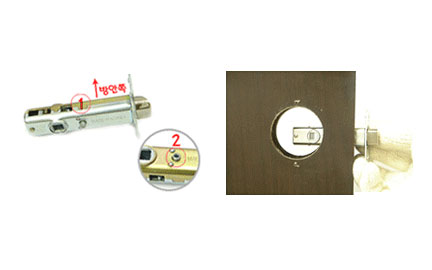

01 _ On the surface of the latch is marked “Inner side the door.” (The grooved part with a locking function is the inner side. The other side is not grooved.) |
|---|
|
02
_

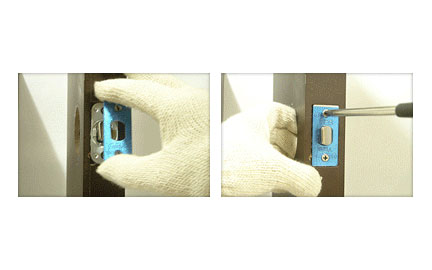

Close the top cover and tighten it with screws as shown in the picture on the right. |
 |
|---|
 |

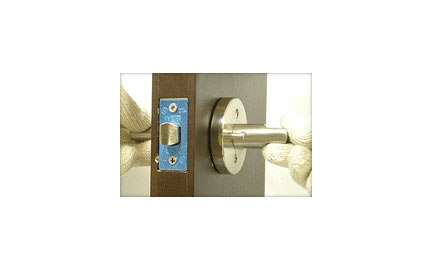

03 _ (Outer room handle) Insert the outer room handle. |
|---|

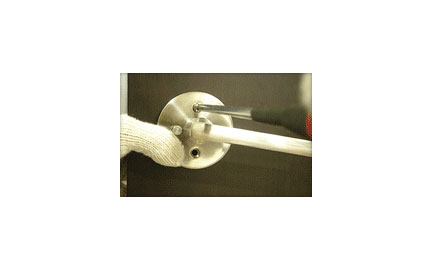

| 04 _ Finally, tighten it properly with the largest screw. |  |
|---|
 |

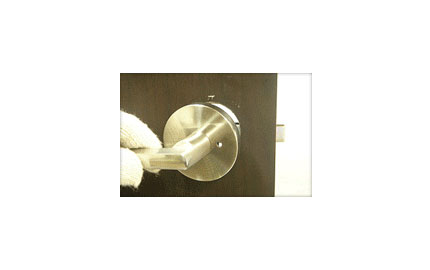

05 _ After installation, pull the Lock button to the inside of the room once and release it. |
|---|
| Integral Lock | Lever Type Lock for front doors |
Lever Type Lock for beds |
Lever Type Lock for bathrooms |
Cylindrical Lock for wooden door |
|---|---|---|---|---|
| How to install |
|---|
|
|---|
| 01 On the surface of the latch is marked “Inner side the door“ (Note: the grooved part with a locking function is the inner side, whereas the other side is not grooved.) |
|
|---|
| 02 Close the top cover and tighten it with screws as shown in the picture on the right. |
|
|---|
| 03 (Outer room handle) Insert the outer room handle. |
|
|---|
| 04 Finally, tighten it properly with the largest screw. |
|
|---|
| 05 After installation, pull the Lock button to the inside of the room once and release it. |
