| How to install |
|---|
 |
01 _ First, open the packaging and check the product components. |
|---|
|
02
_
Check the door to which nothing is attached. The body holes may slightly differ in shape depending on the door. |
 |
|---|
 |
03
_

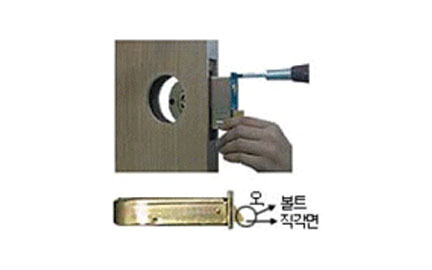

After pushing the box (Part No.2) into the hole of the box, fix it with the face plate fixing screws (Part No.5) (2 positions). ＜Warning＞ Make sure that the right angle side of the bolt is positioned in the direction of the door opening.
|
|---|
|
04
_
Push in the outer handle (Part No.1) as shown in the picture. In this process, make sure to pass the square-shaped long shaft attached to the outer handle (Part No.1) through the square hole in the middle of the box (Part No.2). |
 |
|---|
 |
05 _ Push in the outer handle (Part No.3) as shown in the picture. In this process, insert the square-shaped long shaft of the outer handle (Part No.1) that came out through the box (Part No.2) into the square hole in the middle of the inner handle (Part No.3). |
|---|
| 06 _ Fix the inner handle (Part No.3) and the outer handle (Part No.1) to the door (2 positions) by using the body fixing screw (Part No.4) |  |
|---|
 |
07 _ Put the catch box (Part No.7) in the door frame, put the catch (Part No.6) in the door frame. and then fix the catch (part no. 6) to the door frame with the face plate fixing screws (Part No.5) (2 positions). |
|---|
