Product composition of safety door locks|

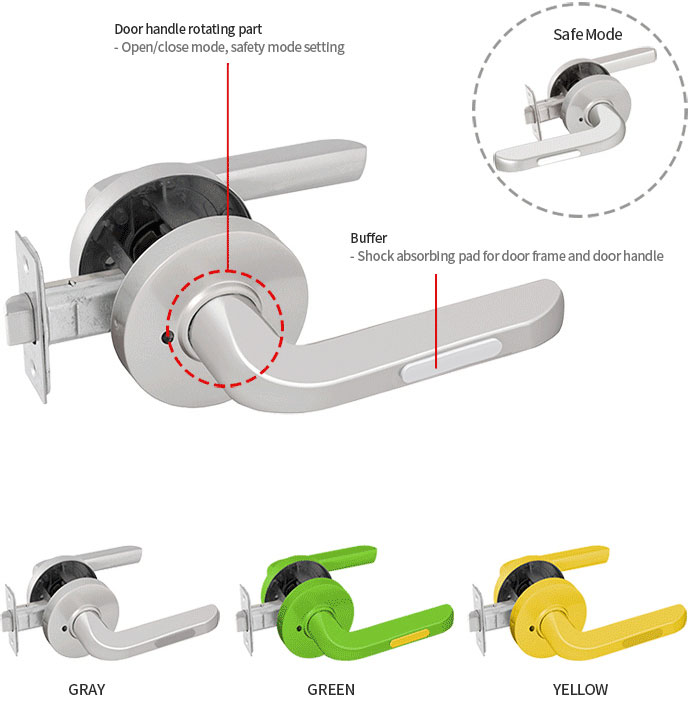

Name and color of each part
|
|
|
User Manual
|
Basic Components
How to install Door Handle ※ This image is only to help understand the process.
How to install Catch and Door Stopper ※ This image is only to help understand the process.
|
||||||||||||||||||||||
|
Warning
|
After installation, keep the door open while checking the operation of the key and the locking device.
If you check with the door closed, problems may occur such as door being locked. |
| Safety accidents in the home | Features of Angel Finger |
|---|---|
| Components and operation principle of Salto |
Product composition of safety door locks |
| Name and color of each part |
|
|---|
| User Manual |
|
Basic Components
|
|
How to install Door Handle
※ This image is only to help understand the process. |
01
|
|---|
| Remove the existing door handle. |
02
|
| Insert the latch to the right direction. (Note: check the inside of the door as marked on the body before setting the direction) |
03
|
| Cover the latch fixing plate and insert short screws (A) into the upper and lower holes of the fixing plate. |
04
|
| Push the square shaft of the outer door handle into the fixed latch square hole from the outside of the door. |
05
|
| Insert the inner door handle inside the door. |
06
|
| Insert the inner door handle inside the door. |
|
How to install Catch and Door Stopper
※ This image is only to help understand the process. |
|---|
01
|
| After removing the existing catch and catch box of the doors, replace it with a new catch box. |
02
|
| fter covering the new catch on the replaced catch box, insert short screws (A) into the upper and lower holes. |
03
|
| Remove the sticker on the back of the door stopper and attach it to the door frame next to the catch box. |
| Warning |
| After installation, keep the door open while checking the operation of the key and the locking device. If you check with the door closed, problems may occur such as door being locked. |
